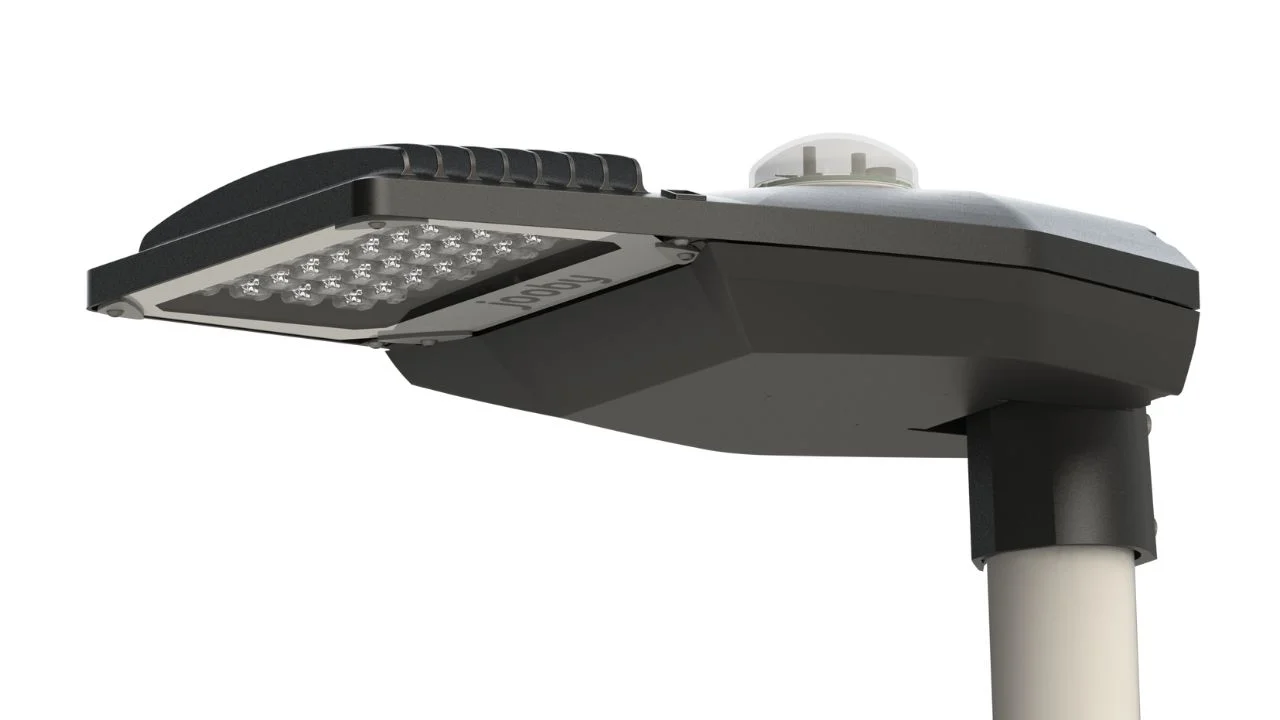

Jooby Luna – a new LED light from a Ukrainian manufacturer

The Ukrainian manufacturer TeleTec has launched mass production of new LED street lighting luminaires Jooby Luna.

The main goal of the new model, which replaces the popular Jooby Avenue line, which has been on the market for more than 10 years, is to maximize energy savings in wartime and help municipalities provide quick repairs, modernization and management of street lighting in critical times.

Russia’s full-scale invasion of Ukraine, attacks and damage to energy infrastructure, blackouts and partial outages create new demands on utilities, requiring them to adapt to the situation, technically monitor and quickly restore capabilities. And the main thing is to reduce consumption to a minimum to reduce the overall load on the grid.

For this purpose, the designers of the TeleTec bureau offered the innovative Jooby Luna luminaire, its own system for automatic or remote control of street lighting networks, the Jooby Cabinet Controller, and the Jooby CMS software, which allows you to transform the entire street lighting system to the level of a smart city and help keep the streets lit.

Position of the luminaire

The luminaire is mounted on a vertical support (floor lamp) in the position of 45 – 95 degrees or cantilever (at an angle) in a horizontal position of 5 – 45 degrees.

Easy mounting of the luminaire on a pole

The new street luminaire is easy to install. The inclined bracket assembly is equipped with a scale for setting the angle of the luminaire. The scale has two readings, for horizontal and vertical installation of the brackets, as well as for changing the angle of inclination, with corresponding markings in the form of teeth.

• Scale H – for horizontal installation of the bracket.
• V scale – for vertical mounting of the bracket.
• The angle of inclination of the luminaire is indicated by the teeth on the bracket

The hull will slope

The luminaire has a robust and durable body made of EN 47100 aluminum alloy, treated with sulfation, and coated with durable powder paint. It also has a durable, IK09-compliant safety glass with an extended service life.

Keyless access to components during installation

Thanks to its design and keyless access, the luminaire can be connected, installed and maintained without dismantling the pole itself. Also, there is no external power cable, which protects the worker.

The lid of the luminaire drops down vertically under the weight of the front part (heavy glass), which provides access to all elements. The lid cannot be opened more than 90 degrees thanks to the opening angle limiter, which also prevents the top cover from detaching, as the hinges remain securely engaged in this position.

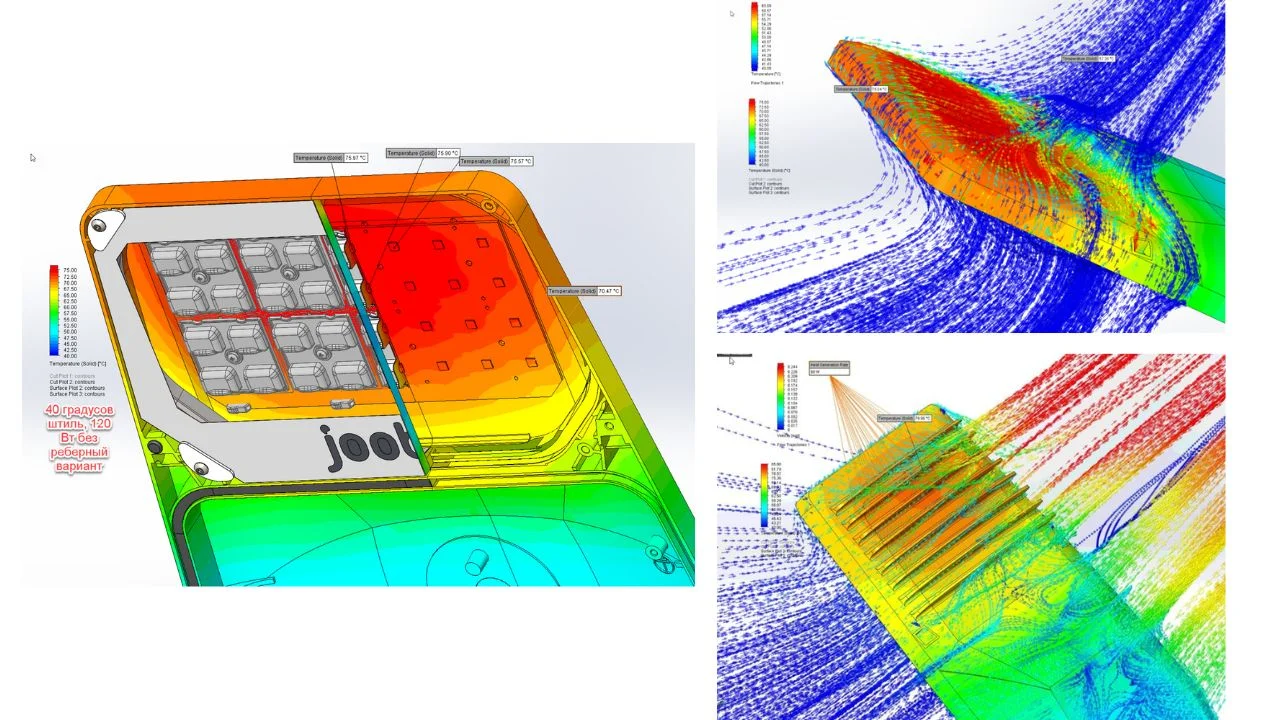

Natural cooling of the luminaire

To ensure the luminaire’s full-fledged operation, a natural cooling system has been developed, with optimized heat distribution in the housing material and heat exchange with the surrounding space, as well as optimized shape, height, pitch, shape and cross-section of the fins for better cooling. A specially designed fin extension at the point of contact with the chassis improves air circulation and heat transfer. It also prevents dirt from accumulating between the fins.

Smart configuration

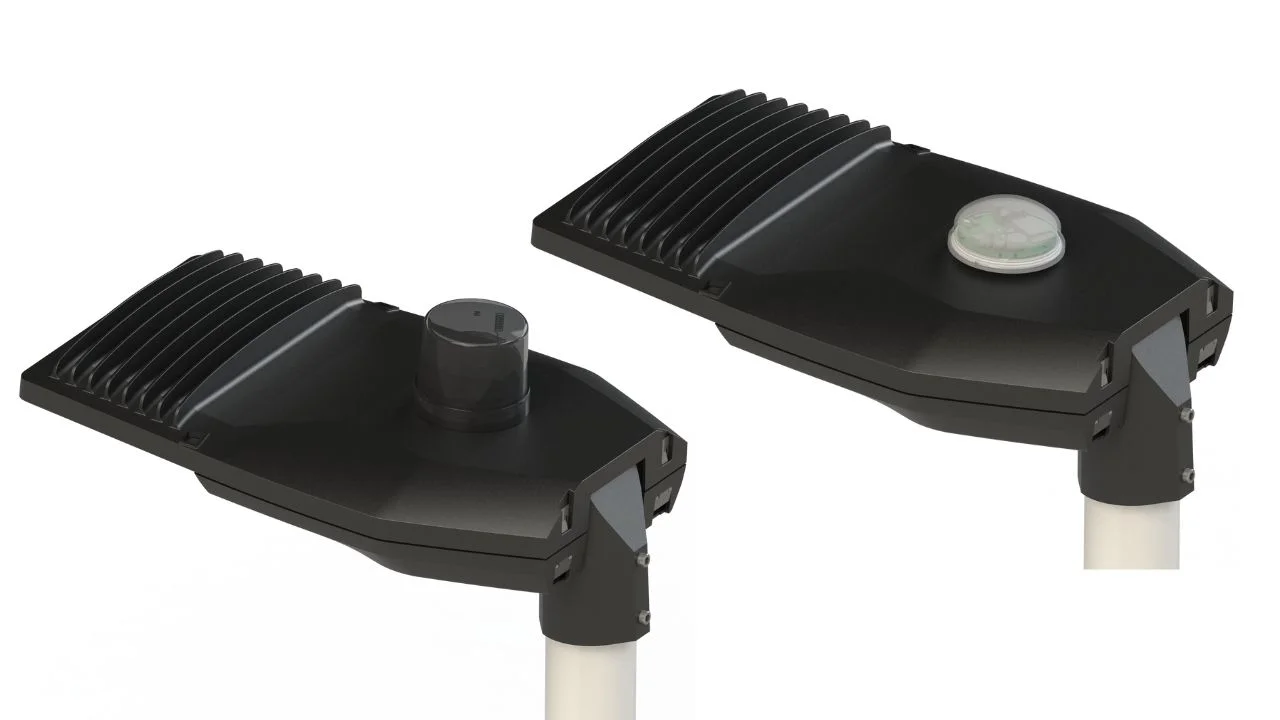

The meter is designed in such a way that every luminaire can become smart and get full dimming functionality without dismantling. For this purpose, it has the ability to install NEMA or Zhaga control devices, which provide the ability to upgrade a luminaire in operation to Smart and upgrade the equipment.

The NEMA module can only be installed on the top cover. Zhaga devices can be installed on the top or bottom cover (when installing the Zhaga module with a radar motion detector).

The new Jooby Luna LED luminaire for street lighting is equipped with more efficient LEDs, the ability to upgrade to the Smart level and change functional parameters without removing the support and fixture, and many other features that help utilities overcome the crisis.

By implementing the system, utilities can automatically regulate the disconnection/disconnection of individual networks, streets, districts, and the entire city, and control the load according to the astrological calendar.

Also, the Jooby Luna street luminaire is ideal for outdoor lighting in various landscapes such as pedestrian areas, streets, roads, parking lots and highways, and features an excellent lumen/watt ratio, offering high performance and energy efficiency at an affordable price.
